Description

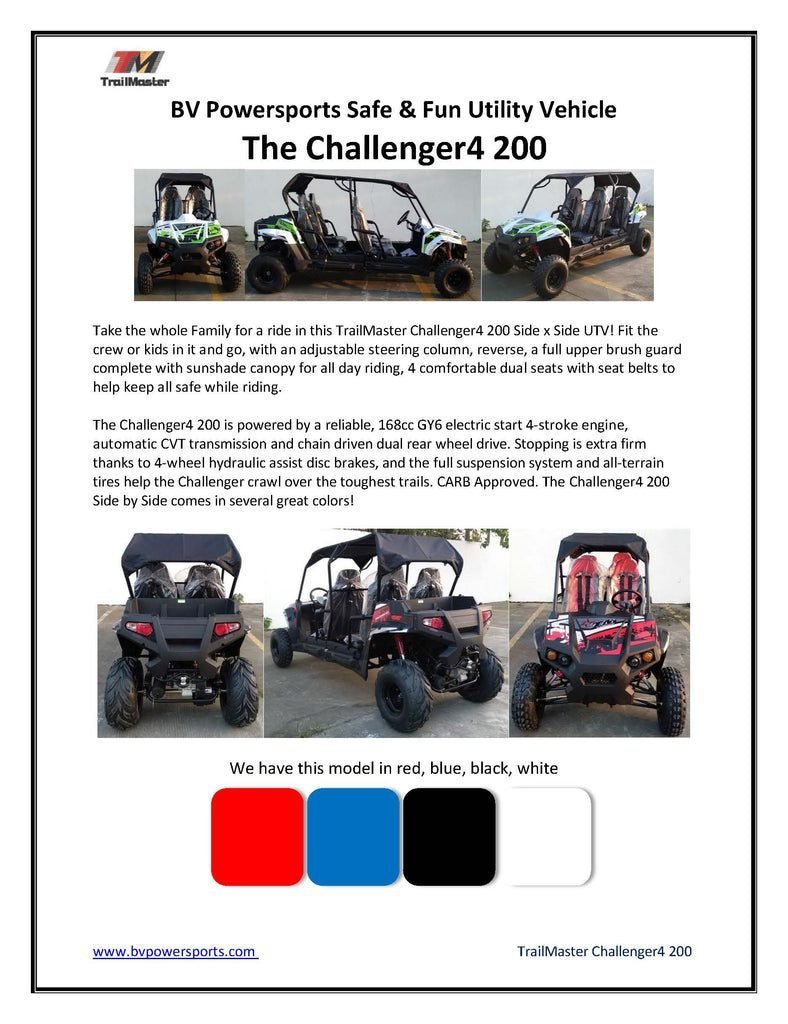

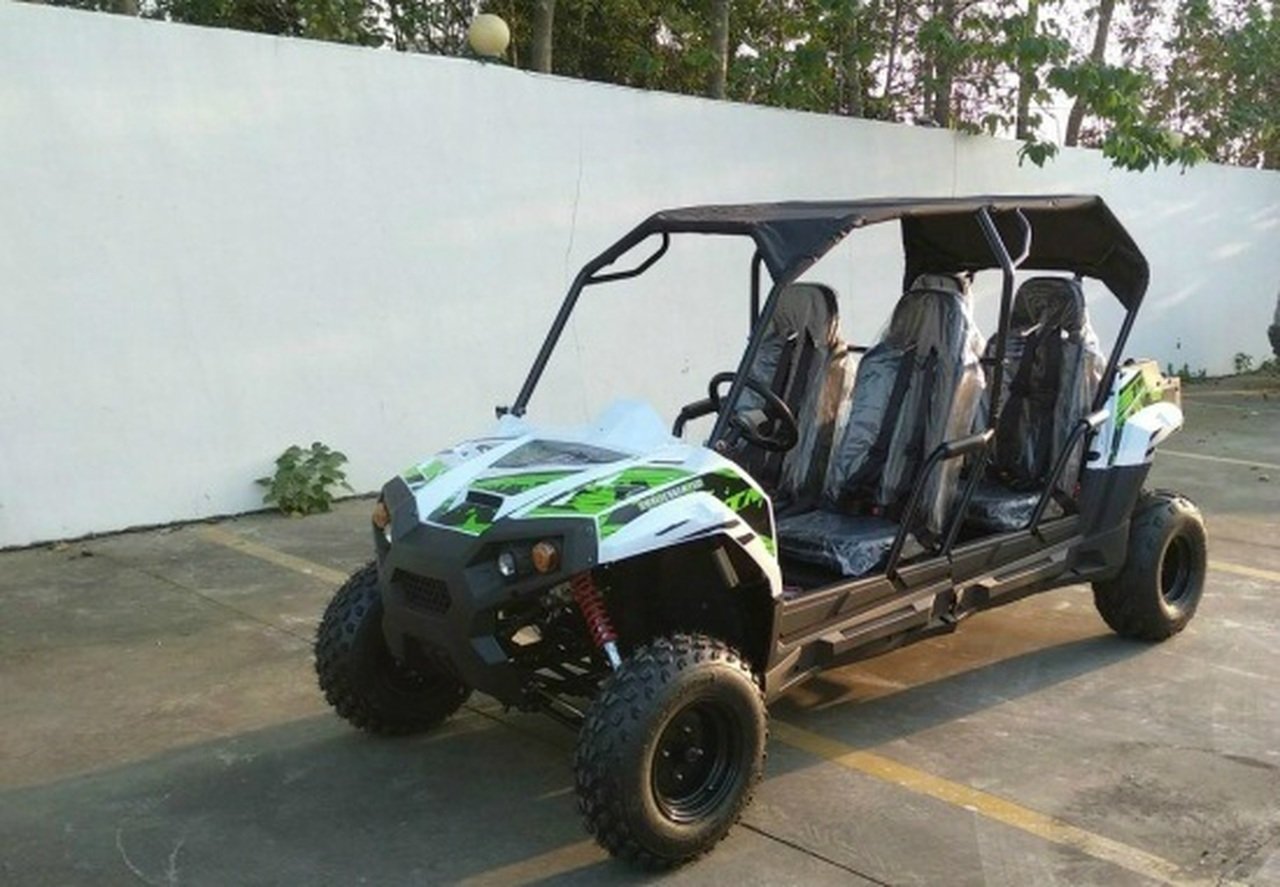

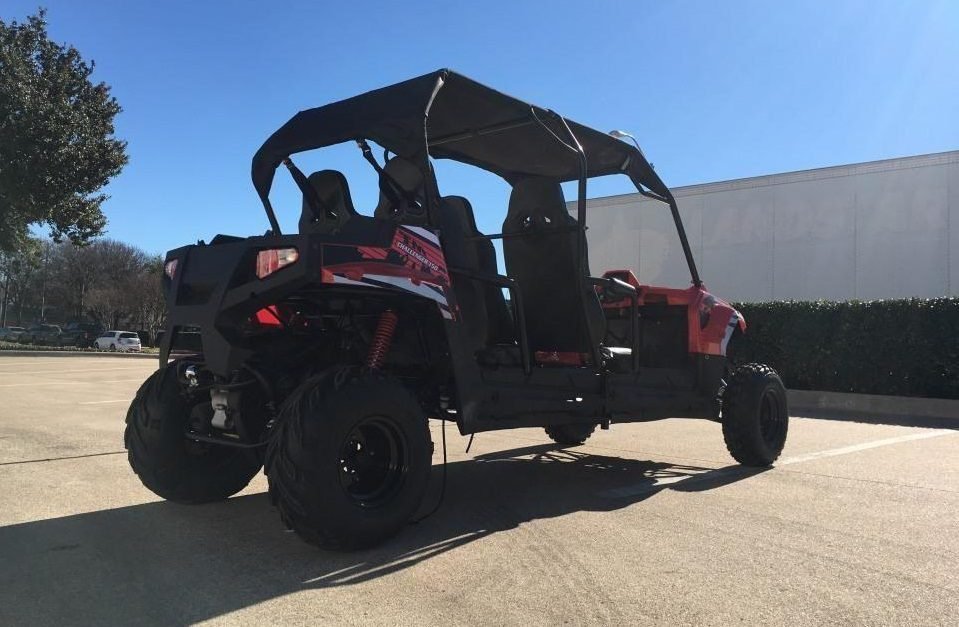

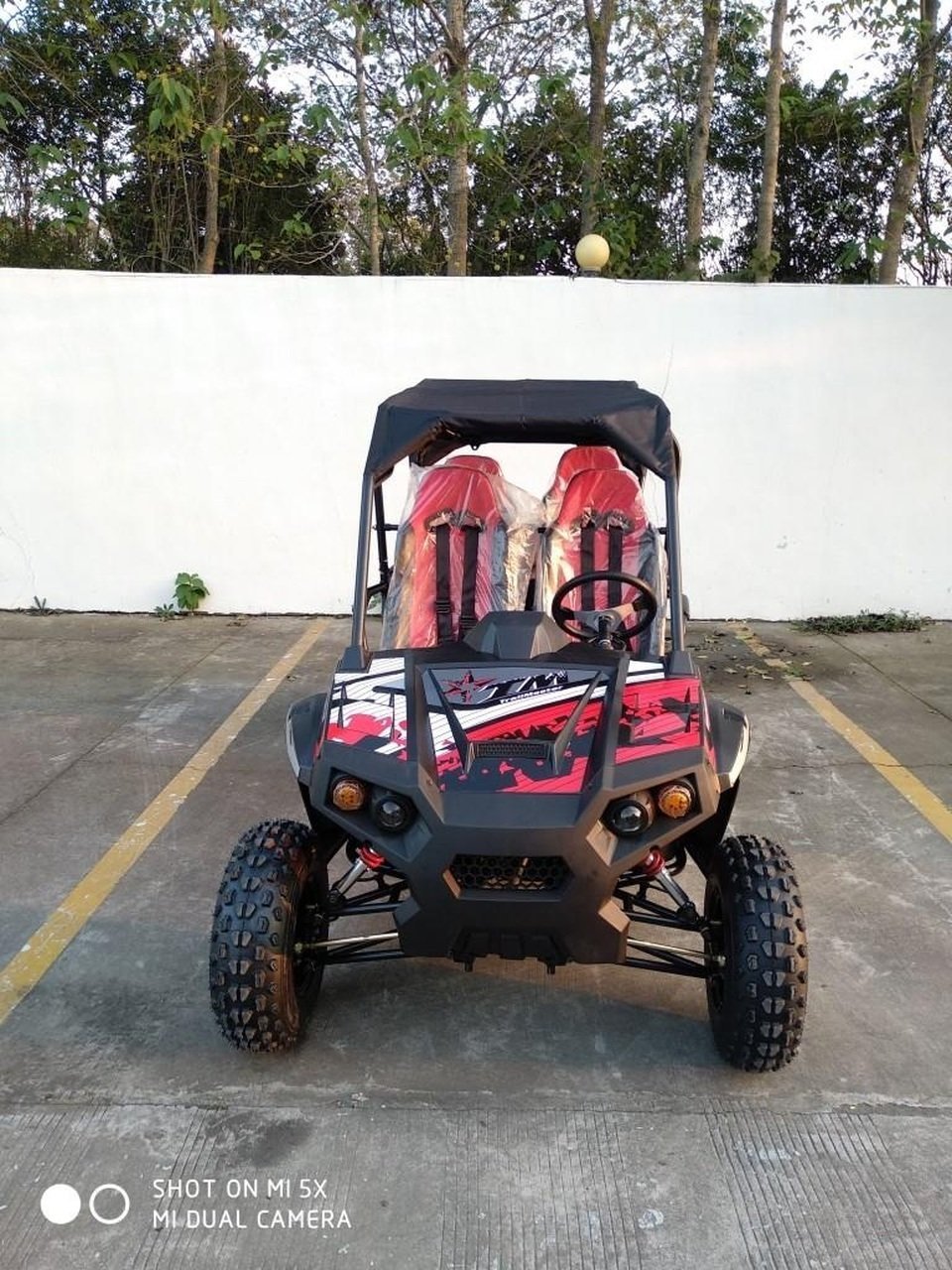

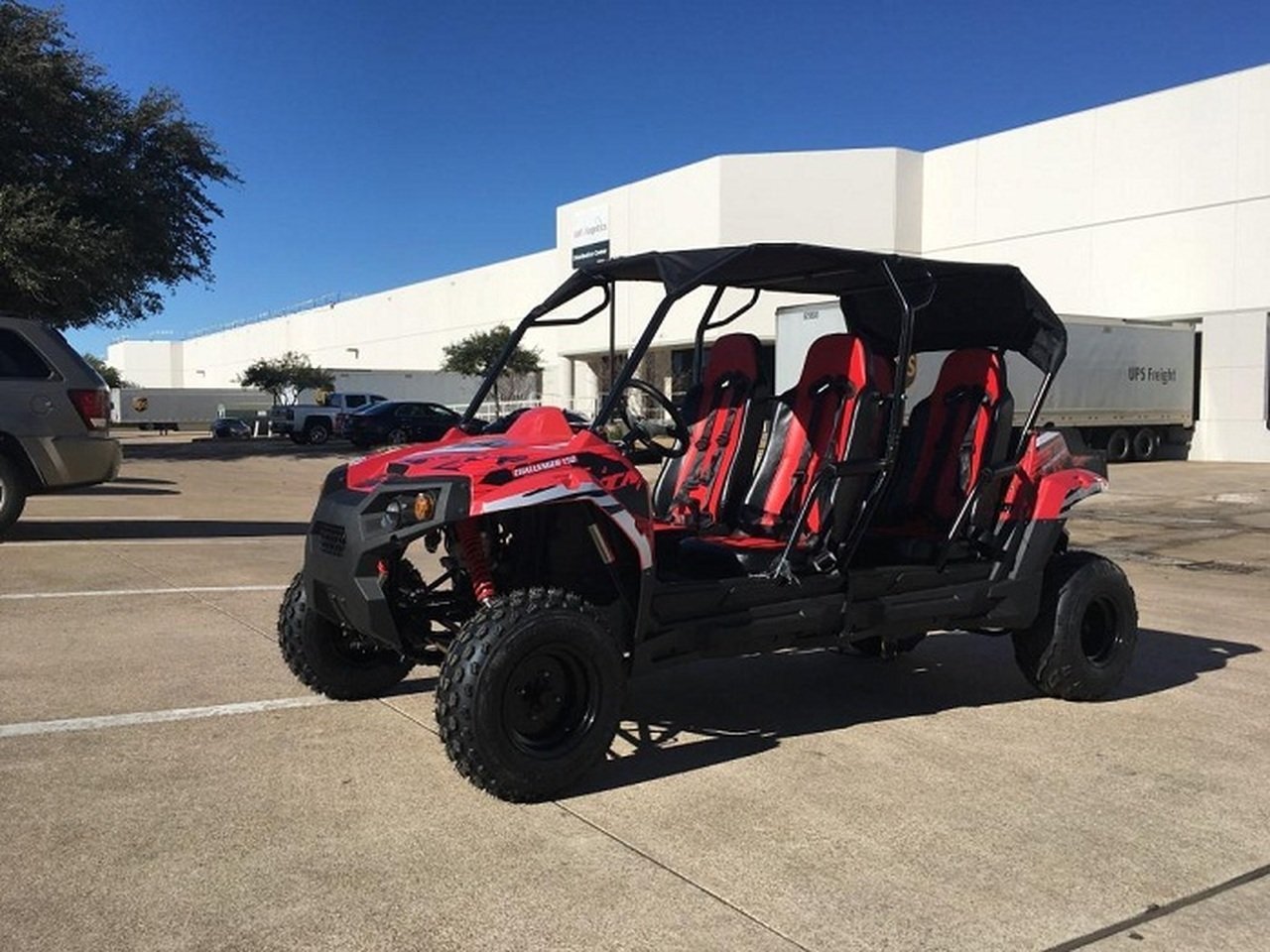

Trailmaster Challenger4 200 4-stroke, Single Cylinder, Air Cooled Four Seater UTV

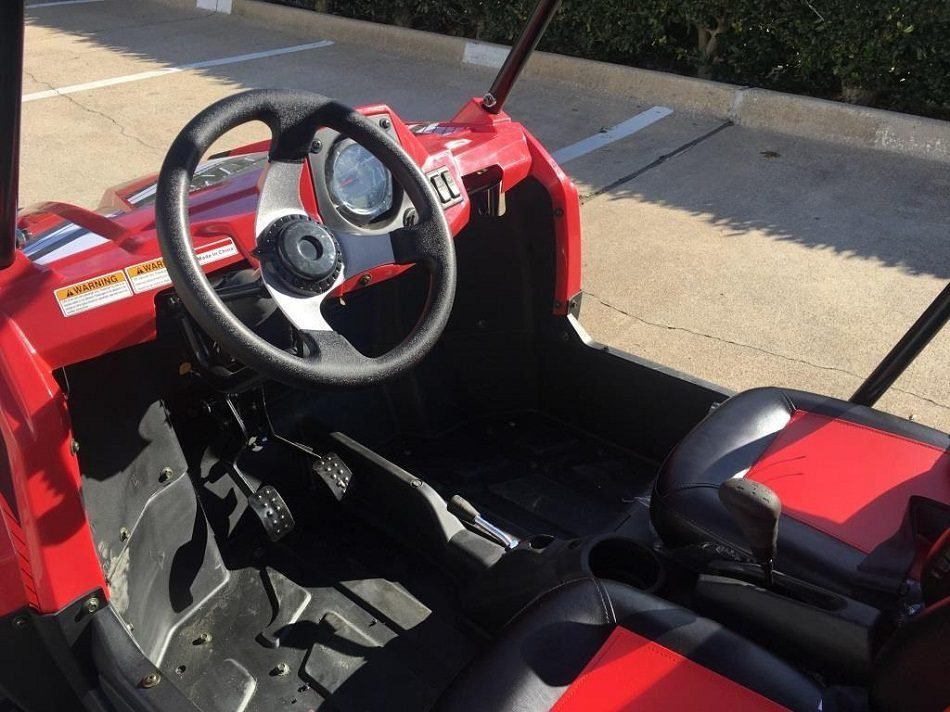

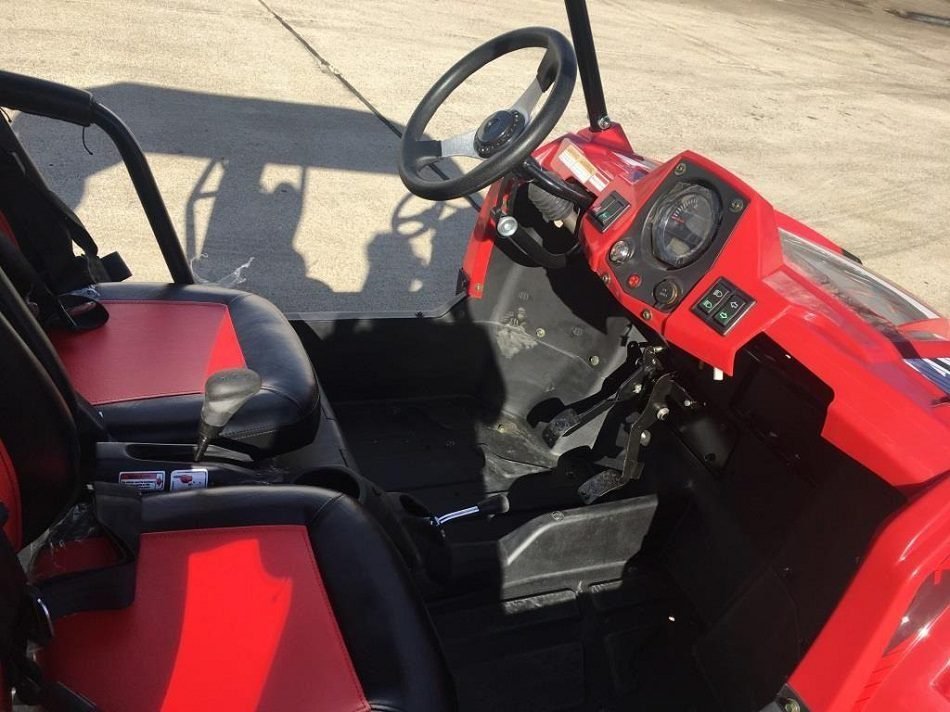

Designed for family fun and rugged durability, the Challenger4 200 is perfect for taking the crew or kids on thrilling rides. With its adjustable steering column, reverse gear, and a full upper brush guard with a sunshade canopy, you’ll be ready for all-day adventures. It features four comfortable dual seats with seat belts for added safety.
Powered by a robust 168cc GY6 electric start 4-stroke engine, this UTV boasts an automatic CVT transmission and chain-driven dual rear-wheel drive. The 4-wheel hydraulic assist disc brakes provide extra stopping power, while the full suspension system and all-terrain tires ensure you can conquer the toughest trails. CARB approved and available in a variety of attractive colors!

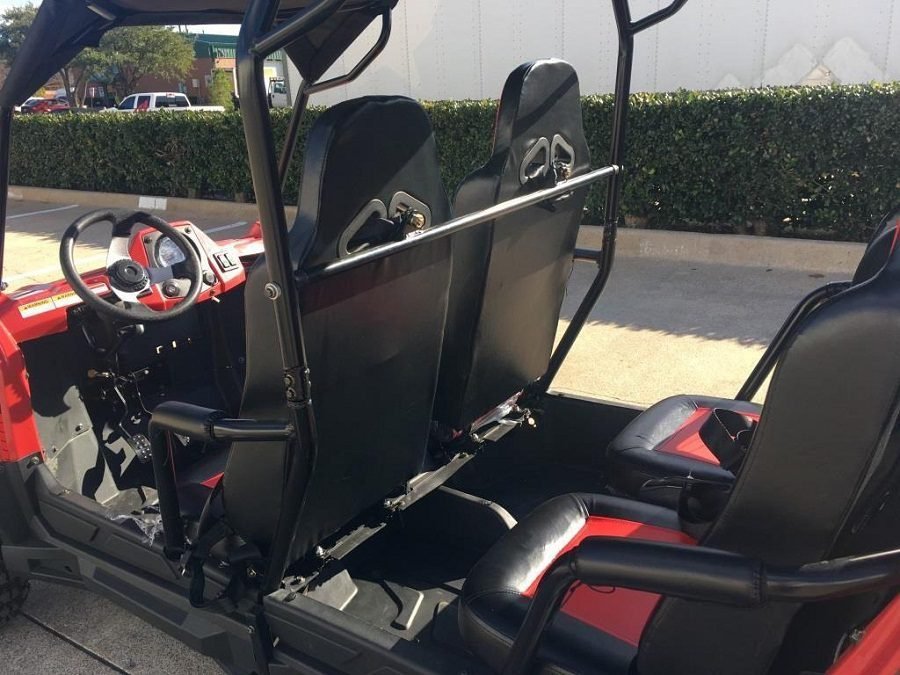

The Challenger4 200 offers ample space for four full-sized adults with a generous load capacity of 800 lbs. The large driving cabin accommodates drivers up to 6’2″, with an adjustable seat that can be set between 38″ and 43″ from the pedal.
Despite its 200cc engine, it achieves a top speed of nearly 25 mph. The new 10-teeth sprocket gear ratio enhances its power, making it feel like much more than just a 200cc UTV.
Choose from sleek colors including red, blue, black, and white!
Key Features:
- Wheelbase: 72 inches
- Dimensions (Length x Width x Height): 98 x 48 x 60 inches (2489 x 1219 x 1524 mm)
- Height to Seat: 21 inches
- Minimum Ground Clearance: 6.3 inches
- CARB Approved
- Configurations and Specifications Subject to Change

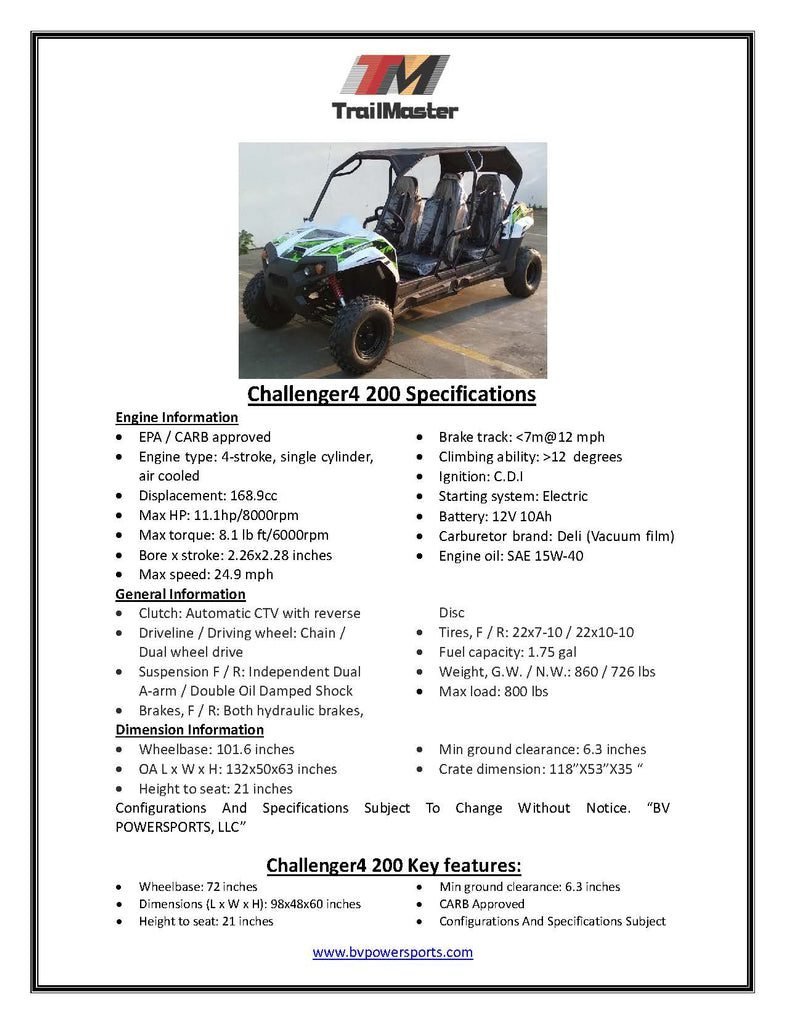

Technical Specifications
Engine Information
- EPA / CARB Approved: Yes
- Engine Type: 4-stroke, single cylinder, air cooled
- Displacement: 168.9cc
- Max HP: 11.1hp / 8000rpm
- Max Torque: 8.1 lb ft / 6000rpm
- Bore x Stroke: 2.26 x 2.28 inches
- Max Speed: 24.9 mph
- Brake Track: <7m @ 12 mph
- Climbing Ability: >12 degrees
- Ignition: C.D.I
- Starting System: Electric
- Battery: 12V 10Ah
- Carburetor Brand: Deli (Vacuum film)
- Engine Oil: SAE 15W-40
General Information
- Clutch: Automatic CVT with reverse
- Driveline / Driving Wheel: Chain / Dual wheel drive

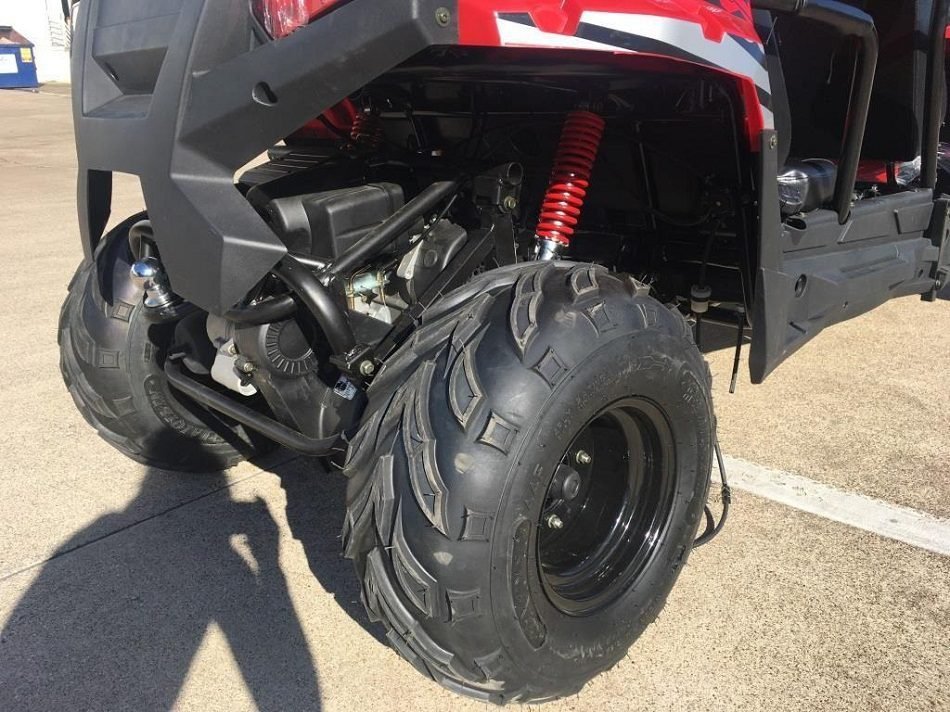

- Suspension F / R: Independent Dual A-arm / Double Oil Damped Shock
- Brakes F / R: Both hydraulic brakes, Disc
- Tires F / R: 22×7-10 / 22×10-10
- Fuel Capacity: 1.75 gal
- Weight, G.W. / N.W.: 860 lbs / 726 lbs – 390 kg / 329 kg
- Max Load: 800 lbs
Dimension Information
- Wheelbase: 101.6 inches
- Overall Length x Width x Height: 132 x 50 x 63 inches / 3352 x 1270 x 1600 mm
- Height to Seat: 21 inches
- Min Ground Clearance: 6.3 inches
- Crate Dimension: 118 x 53 x 35 inches
