Description

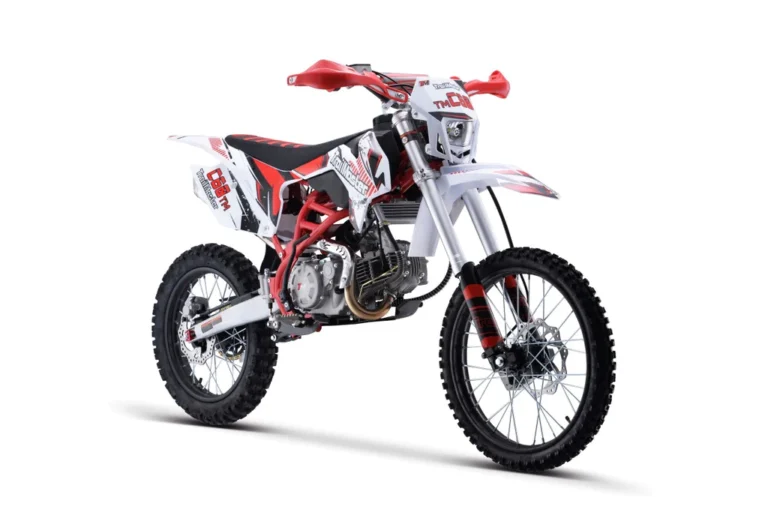

Trailmaster TM C60 160cc Off-Road Dirt Bike, 4-Speed Manual, 34″ Seat Height, Kick Start
Elevate your off-road experience with the Trailmaster TM C60, a powerful 160cc dirt bike designed for rugged terrain and thrilling adventures. With a seat height of 34 inches, it offers a commanding riding position and comfortable fit for a variety of riders.
Powered by a ZM single-cylinder, 4-stroke engine with oil cooling, the TM C60 provides dependable performance and efficient cooling. The bike features a 4-speed manual transmission, allowing you to seamlessly shift gears and tackle diverse riding conditions with precision. For reliable engine ignition, the TM C60 comes equipped with a kick start.
Built on a durable twin girders steel tube frame, the TM C60 ensures stability and resilience on tough trails. It also includes alloy bracket handguards and foldable brake and clutch levers, adding both protection and convenience during your rides.
Features
- Powerful 4 stroke ZhongShen oil cooled 156ml, 14.3 HP engine
- Kick start, 4 gear manual clutch
- 53.3“ wheel base and 34.6” seat high
- 780mm Inverted Hydraulic Forks, 150mm Travel
- 410mm Spring Pre-load None-Adjustable Shock
- Front tire 19”/Rear Tire 16”
- LED Headlight
- Foldable Clutch & Brake Lever
- Alloy Bracket Handguard
- TrailMaster Ribbed Seat
Technical Specifications
Engine System
- Engine Type: ZM-Single Cylinder, 4-Stroke, Oil Cooling
- Displacement: 156 ml
- Max Power: 10.5 kW / 8500 rpm (±5%)
- Max Torque: 11.5 N·m / 5500 rpm (±5%)
- Compression Ratio: 11.5:1
- Bore and Stroke: 60 x 55 mm
- Shift Type: N-1-2-3-4, Four-Gear Manual Shift
- Start Type: Kick Start
- Ignition: CDI
- Min. Fuel Consumption: ≤367 g/kW·h
- Engine Oil #: SJ-5W/40
- Transmission: Chain Drive; #428 & 120L Chain, 14/41T
Size Data
- Overall Size: 78.7″ x 28.9″ x 44.5″ (2000 x 735 x 1130 mm)
- Wheel Base: 53.3″ (1355 mm)
- Seat Height: 34.6″ (880 mm)
- Ground Clearance: 13.4″ (340 mm)
- Fuel Capacity: 7.5 L / 2 Gal.
- Tires: Front: 70/100-19, Rear: 90/100-16 Knobby Tires
- Wheels: Steel 1.6 x 19″ / 1.85 x 16″ Rims, Cast Hubs
Frame/Suspension/Brake System/More Features
- Frame: Twin Girders Steel Tube Frame
- Front Fork: Inverted 45 x 48 x 780 mm Forks, Non-Adjustable
- Rear Shock: 10 mm x 410 mm, Spring Pre-load
- Swing-Arm: Steel Tube, 14 inch
- Handle Bar: Steel Crossbar, L=720 mm; Dia=22 mm
- Front Brake: Hydraulic Twin Piston Caliper, 220 mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190 mm Disc
- Exhaust: Steel Pipe with Catalyst Converter (EPA Standard)
- Brake & Clutch Lever: Foldable & Handguard
- Seat: Ribbed TrailMaster Seat
- Headlight: LED
Packing and Loading
- Packing Size: 66″ x 16.3″ x 31.3″ (1680 x 415 x 795 mm)
- Net Weight: 190 lbs (86 kg)
- Gross Weight: 227 lbs (103 kg)
