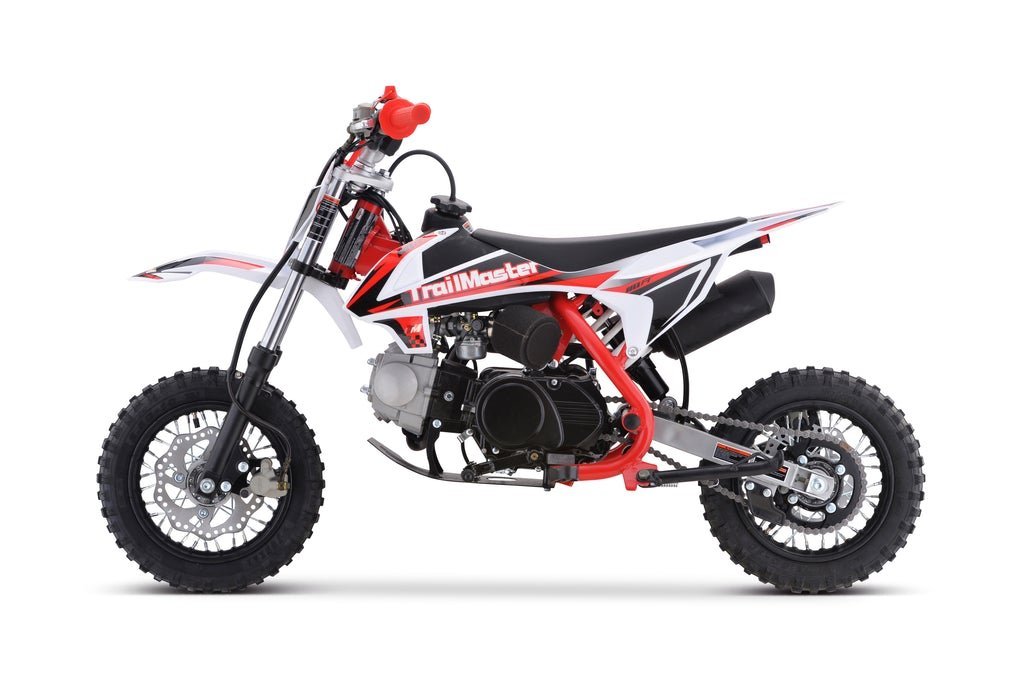

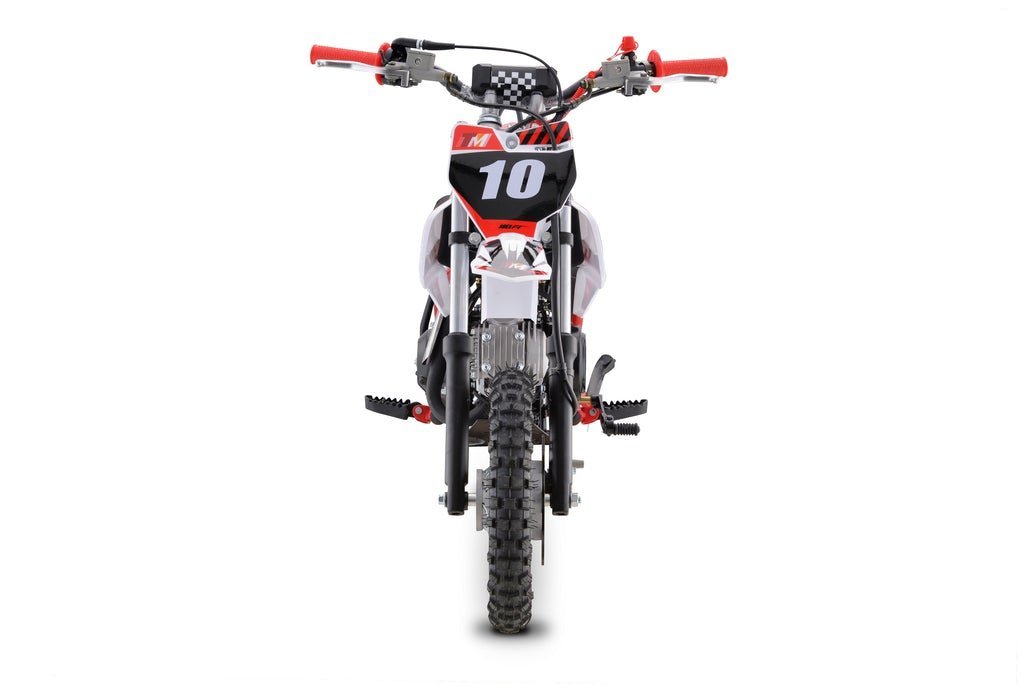

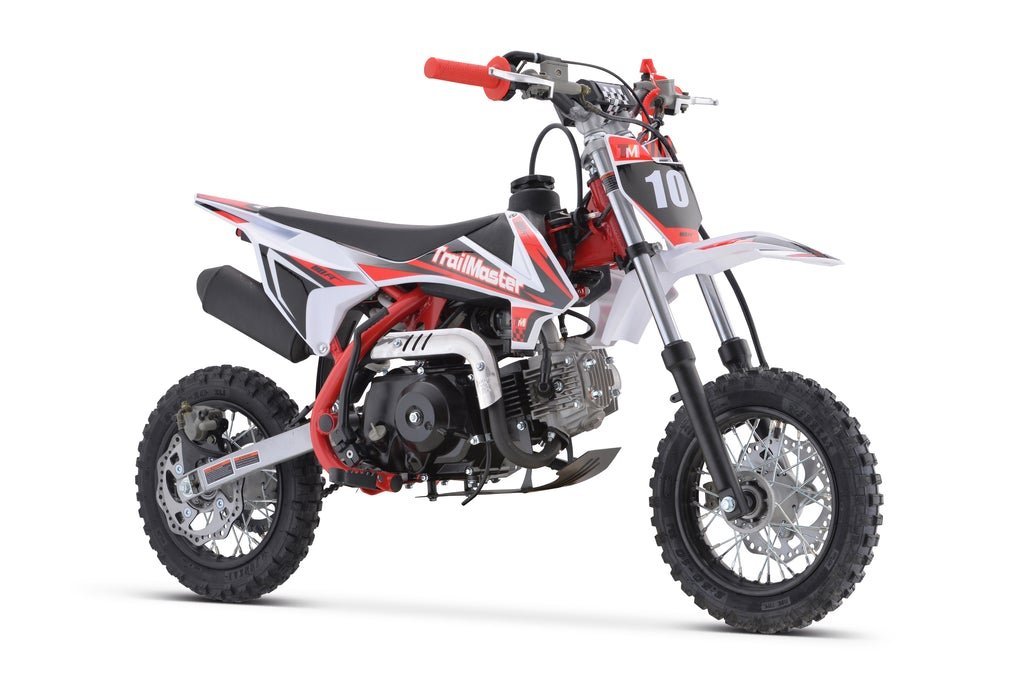

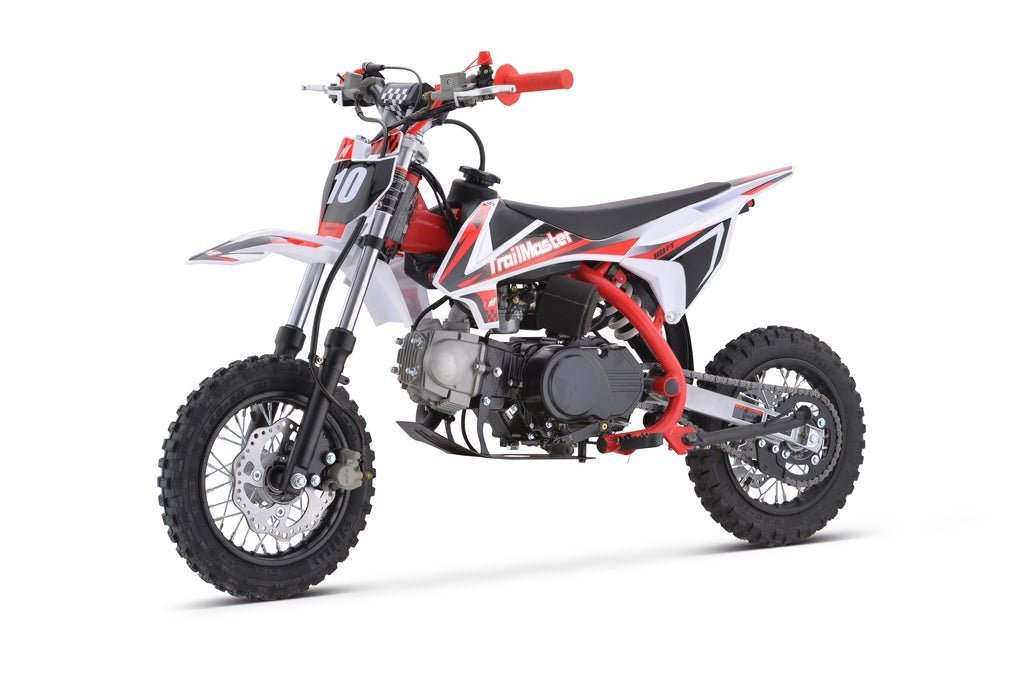

Trailmaster TM10 Dirt Bike 110cc Semi Auto

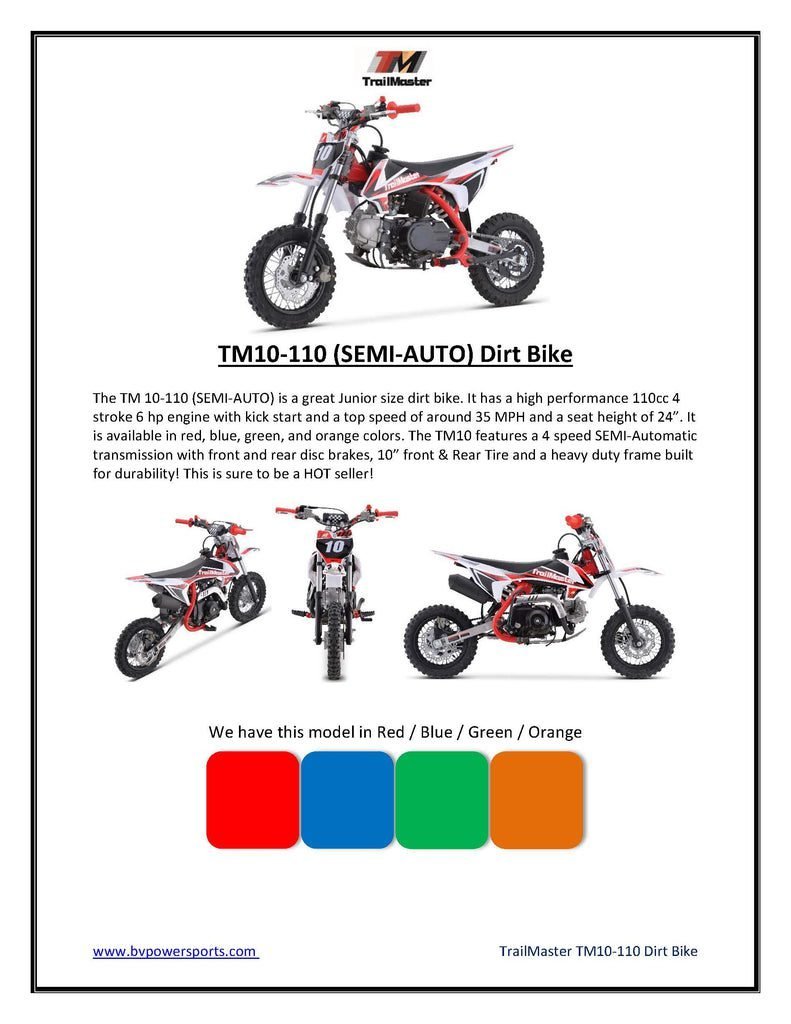

The TrailMaster TM 10-110 is the perfect dirt bike for young riders, offering a blend of power, performance, and safety. Equipped with a high-performance 110cc 4-stroke engine generating 6 HP, this bike reaches speeds of up to 35 MPH. The 24” seat height is ideal for junior riders, providing a comfortable and controlled experience.
The TM 10-110 features a 4-speed semi-automatic transmission, allowing young riders to enjoy a smooth and easy ride without the complexity of a manual clutch. With front and rear disc brakes and 10” tires, this bike ensures reliable stopping power and superior traction on various terrains. The heavy-duty frame is built for durability, making it a rugged choice for adventurous young riders.
Available in vibrant red, blue, green, and orange, the TM 10-110 is designed to stand out and is sure to be a top choice for junior dirt bike enthusiasts.

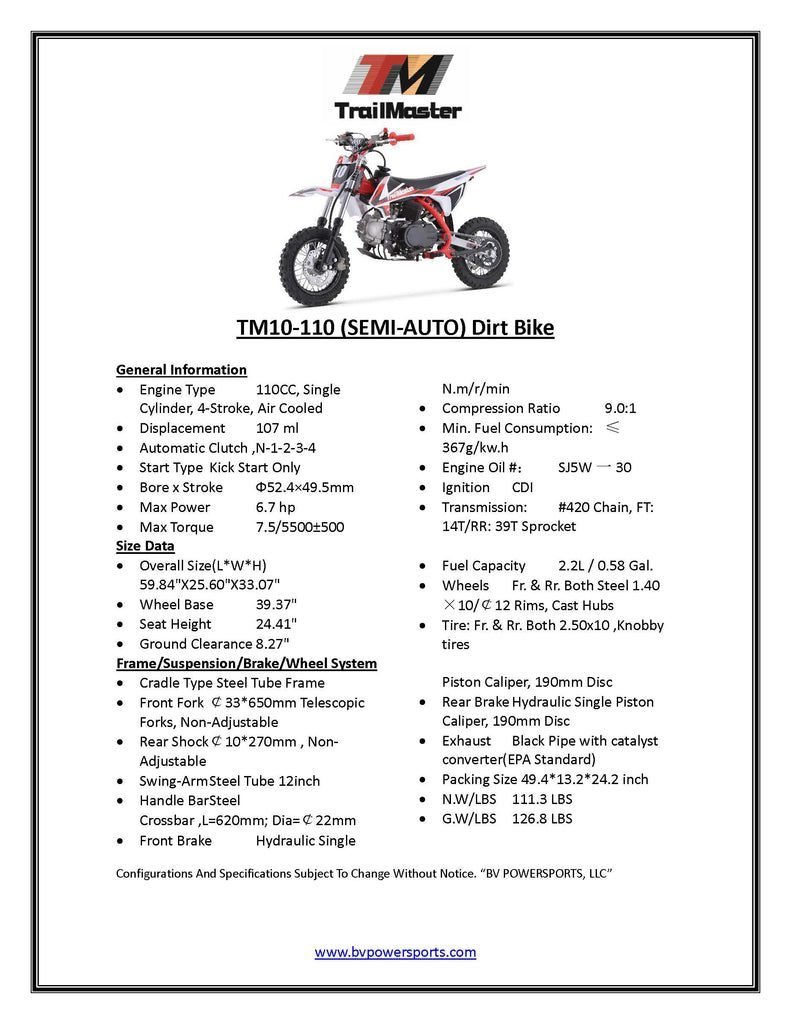

Technical Specifications
General Information
- Engine Type: 110CC, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement: 107 ml
- Clutch: Automatic, N‐1‐2‐3‐4
- Start Type: Kick Start Only
- Bore x Stroke: Ф52.4 × 49.5mm
- Max Power: 6.7 hp
- Max Torque: 7.5 N.m @ 5500 ± 500 RPM
- Compression Ratio: 9.0:1
- Min. Fuel Consumption: ≤ 367g/kw.h
- Engine Oil: SJ5W-30
- Ignition: CDI
- Transmission: #420 Chain, FT:14T/RR: 39T Sprocket
Size Data
- Overall Size (L × W × H): 59.84 x 25.60 x 33.07 inches (1519 x 650 x 839 mm)
- Wheel Base: 39.37 inches
- Seat Height: 24.41 inches
- Ground Clearance: 8.27 inches
- Fuel Capacity: 2.2L / 0.58 Gal
- Wheels (Front & Rear): Both Steel 1.40×10/￠12 Rims, Cast Hubs
- Tire (Front & Rear): 2.50×10, Knobby Tires
Frame / Suspension / Brake / Wheel System
- Frame: Cradle Type Steel Tube Frame
- Front Fork: Ф33x650mm Telescopic Forks, Non‐Adjustable
- Rear Shock: Ф10x270mm, Non‐Adjustable
- Swing‐Arm: Steel Tube 12 inch
- Handle Bar: Steel Crossbar, L=620mm; Dia=￠22mm
- Front Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust: Black Pipe with Catalyst Converter (EPA Standard)
Packing Information
- Packing Size: 49.4 x 13.2 x 24.2 inches
- Net Weight: 111.3 lbs (50 kg)
- Gross Weight: 126.8 lbs (58 kg)
