Description

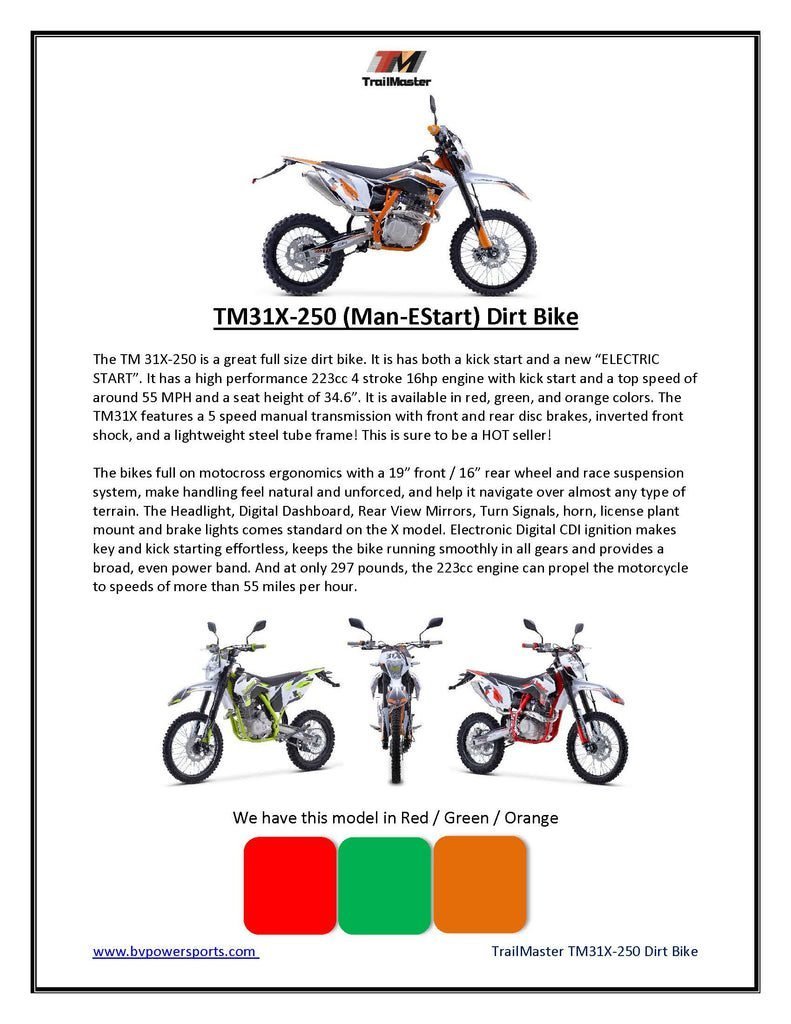

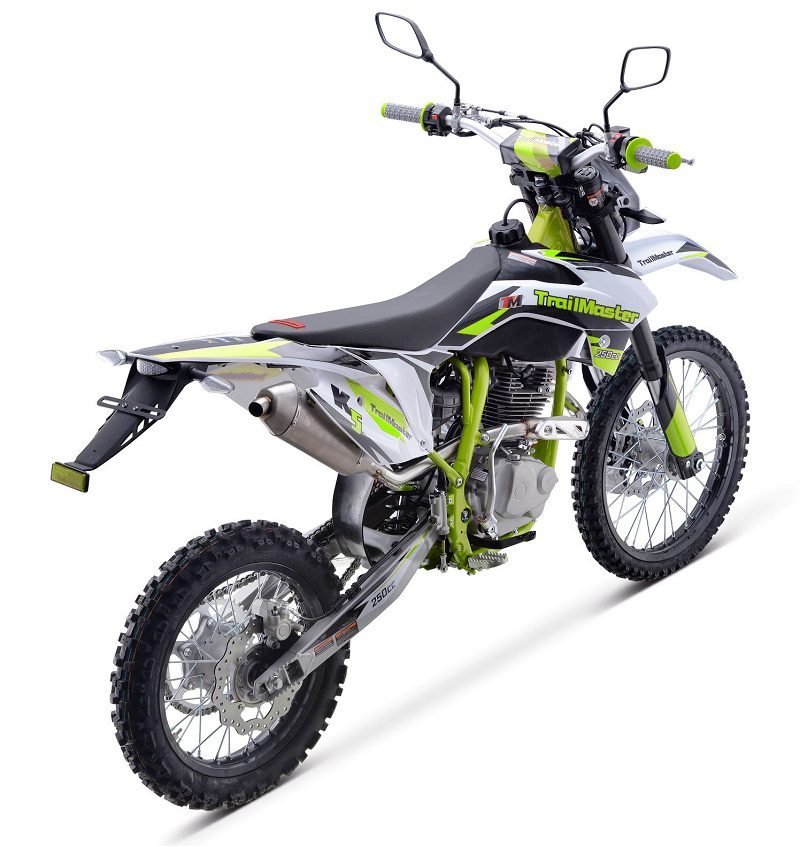

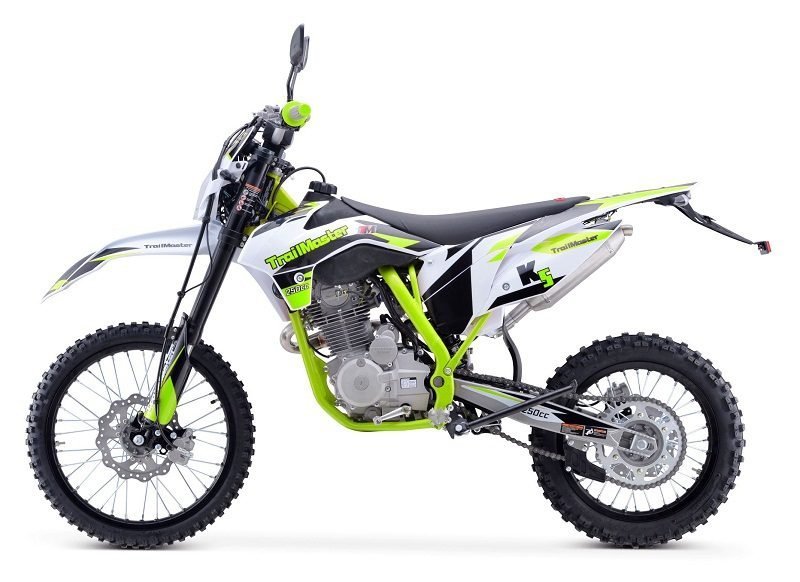

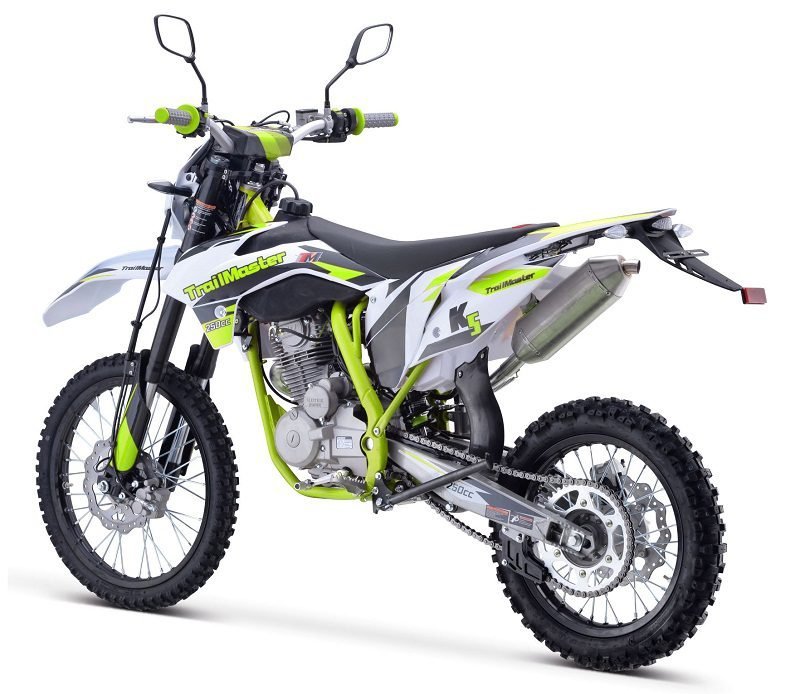

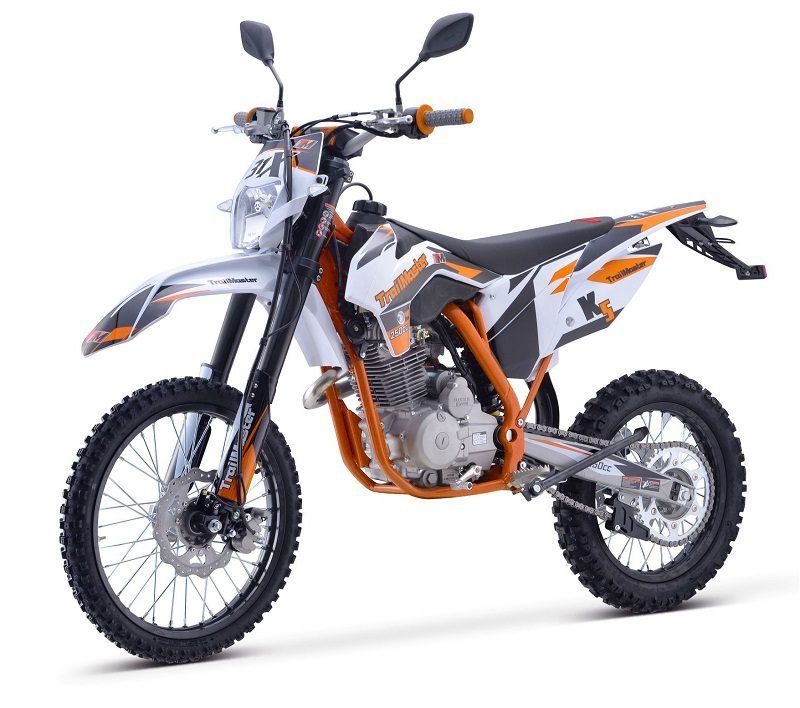

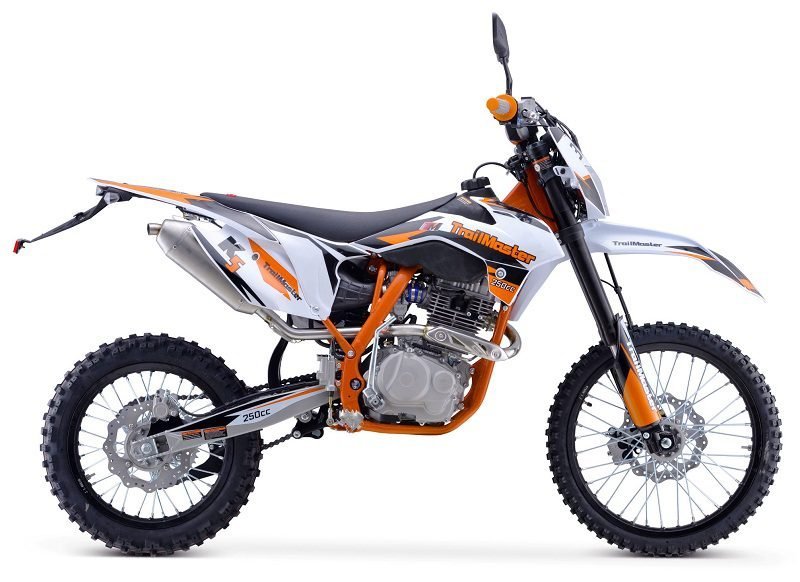

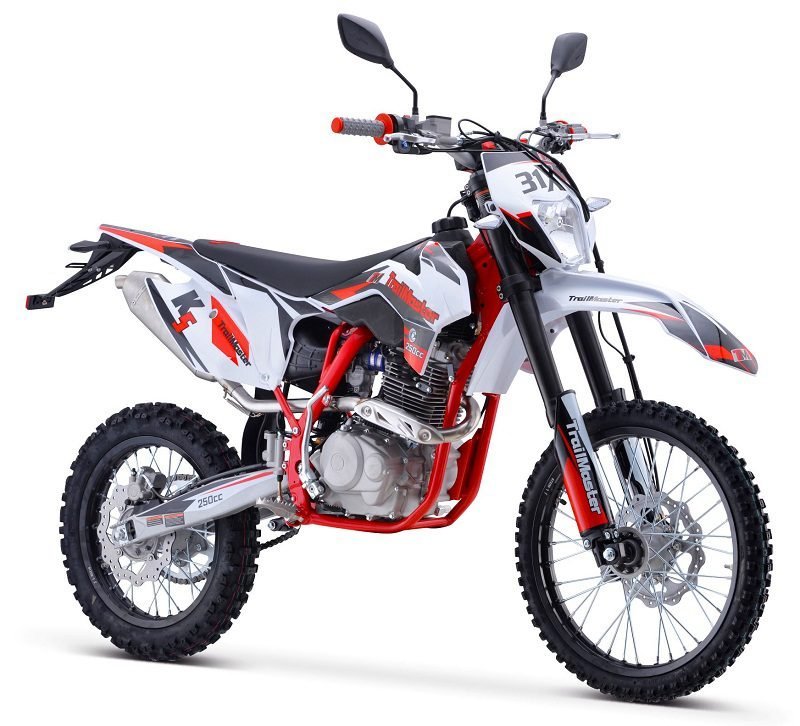

Trailmaster TM31X 250 Dirt Bike, 5 Speed Manual, Side View Mirrors, LED Headlight, Electric and kick start
Elevate your off-road experience with the TrailMaster TM31X 250 Dirt Bike, engineered for both power and precision. This high-performance bike features a 5-speed manual transmission, allowing riders to master diverse terrains with ease. Whether you prefer the convenience of electric start or the reliability of kick start, the TM31X 250 has you covered, ensuring a seamless start every time.
Constructed with a lightweight steel tube frame, the TM31X 250 is designed for durability without sacrificing agility. Its striking 19” front tire and 16” rear tire provide excellent traction and stability, while the dual-piston caliper 240mm disc front brake delivers reliable stopping power. The bike’s digital dashboard keeps you informed with essential metrics, enhancing your riding experience.
Additional features include side view mirrors for added safety and a bright LED headlight for improved visibility during low-light conditions. The TM31X 250 delivers a maximum power output of 12 kW at 7000 RPM, combining robust performance with an efficient design.

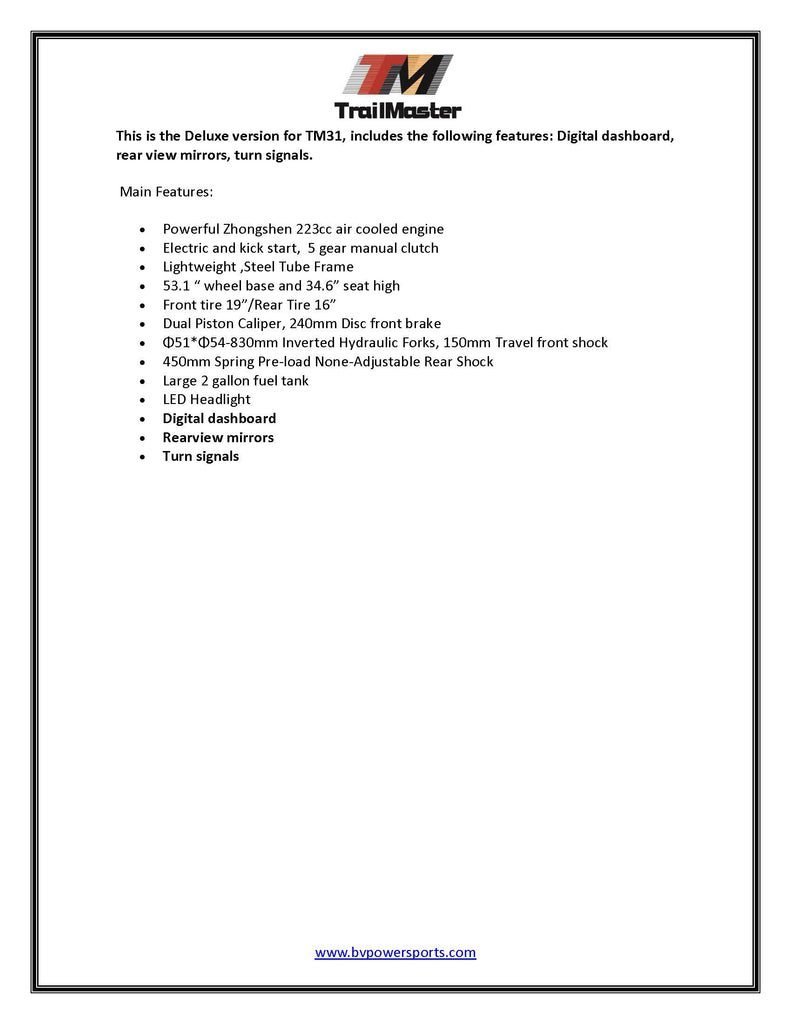

Main Features:
- Powerful Zhongshen 223cc air cooled engine
- Electric and kick start, 5 gear manual clutch
- Lightweight ,Steel Tube Frame
- 53.1 “ wheel base and 34.6” seat high
- Front tire 19”/Rear Tire 16”
- Dual Piston Caliper, 240mm Disc front brake
- Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel front shock
- 450mm Spring Pre-load None-Adjustable Rear Shock
- Large 2 gallon fuel tank
- LED Headlight

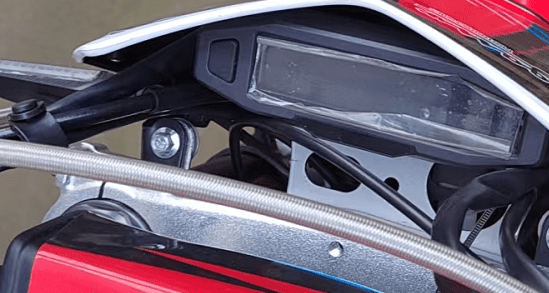

- Digital dashboard
- Rearview mirrors
- Turn signals

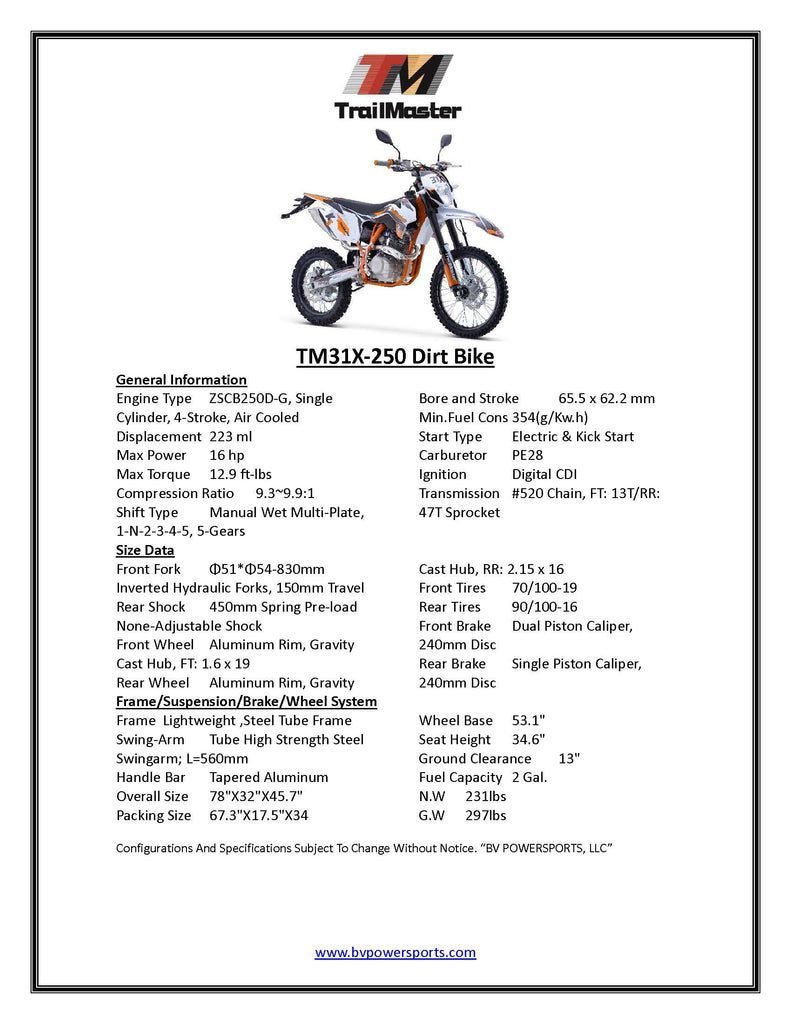

Technical Specifications
Power System
- Engine Type: ZSCB250D-G, Single Cylinder, 4-Stroke, Air Cooled
- Displacement: 223 ml
- Max Power: 12 kW @ 7000 r/min
- Max Torque: 17.5 N.m @ 5500 r/min
- Compression Ratio: 9.3~9.9:1
- Shift Type: Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears
- Bore and Stroke: 65.5 x 62.2 mm
- Min. Fuel Consumption: ≤ 354 g/Kw.h
- Start Type: Electric & Kick Start
- Carburetor: PE28
- Ignition: Digital CDI
- Transmission: #520 Chain, FT: 13T / RR: 47T Sprocket
Performance
- Front Fork: Φ51 x Φ54 – 830mm Inverted Hydraulic Forks, 150mm Travel
- Rear Shock: 450mm Spring Pre-load, Non-Adjustable Shock
- Front Wheel: Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 19
- Rear Wheel: Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 16
- Front Tires: 70/100-19
- Rear Tires: 90/100-16
- Front Brake: Dual Piston Caliper, 240mm Disc
- Rear Brake: Single Piston Caliper, 240mm Disc
Details
- Frame: Lightweight Steel Tube Frame
- Swing-Arm: Tube High Strength Steel Swingarm; L=560mm
- Handle Bar: Tapered Aluminum #6061
- Overall Size (L × W × H): 78 x 32 x 45.7 inches (1980 x 810 x 1160 mm)
- Packing Size (L × W × H): 67.3 x 17.5 x 34 inches (1710 x 445 x 860 mm)
- Wheel Base: 53.1 inches (1350 mm)
- Seat Height: 34.6 inches (880 mm)
- Ground Clearance: 13 inches (330 mm)
- Fuel Capacity: 7.5 L / 2 Gal.
- Net Weight: 231 lbs (105 kg)
- Gross Weight: 297 lbs (135 kg)
