Description

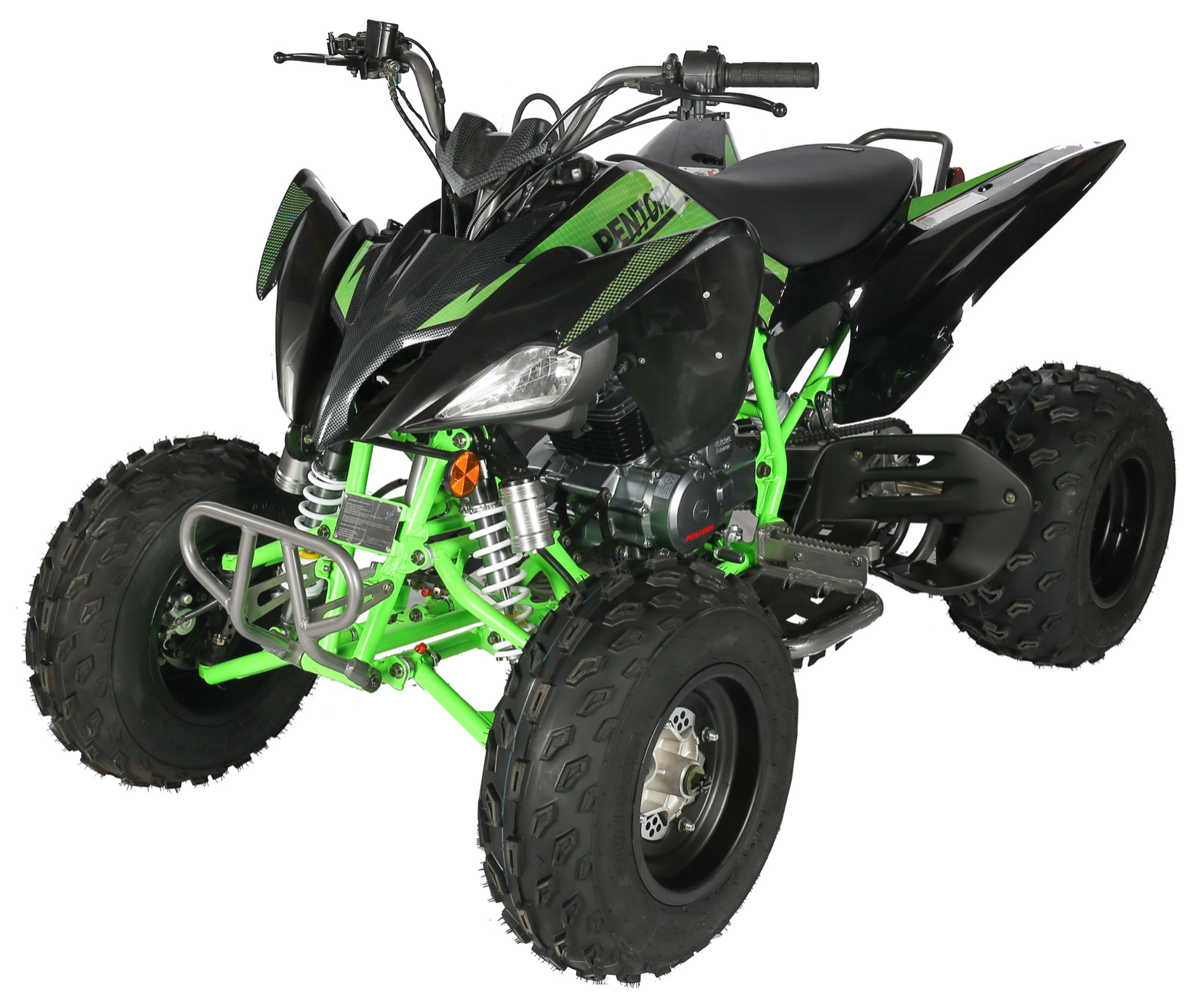

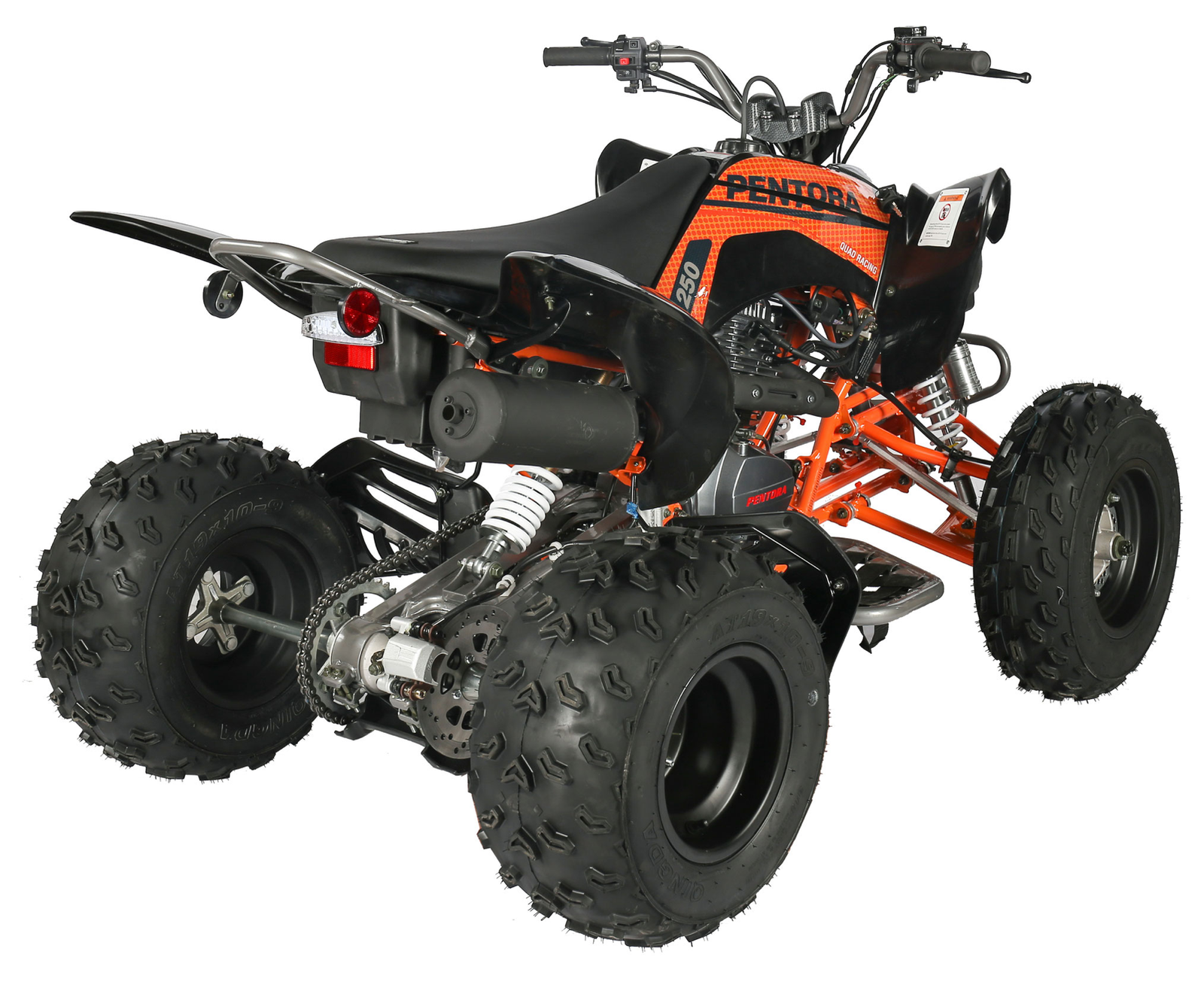

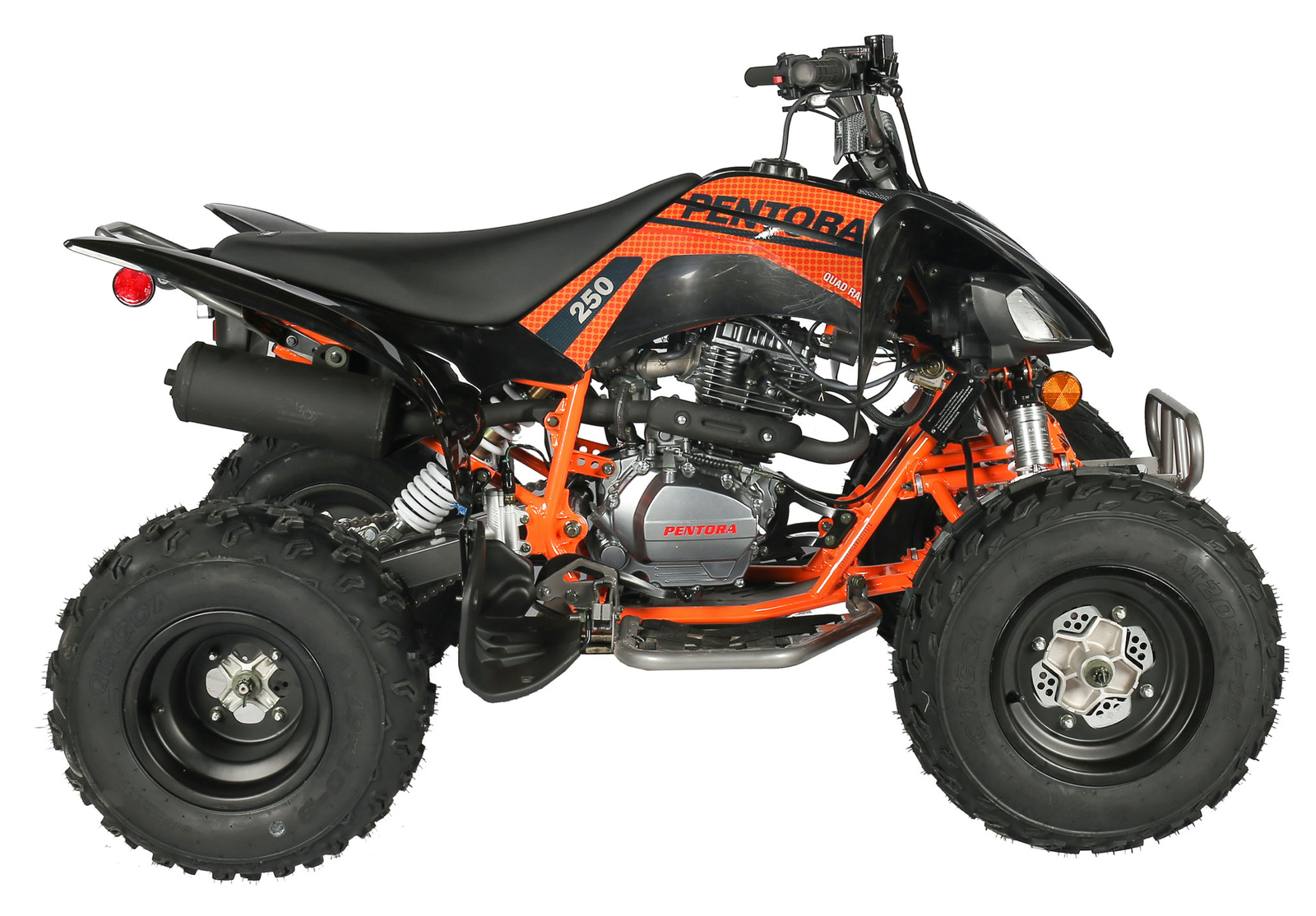

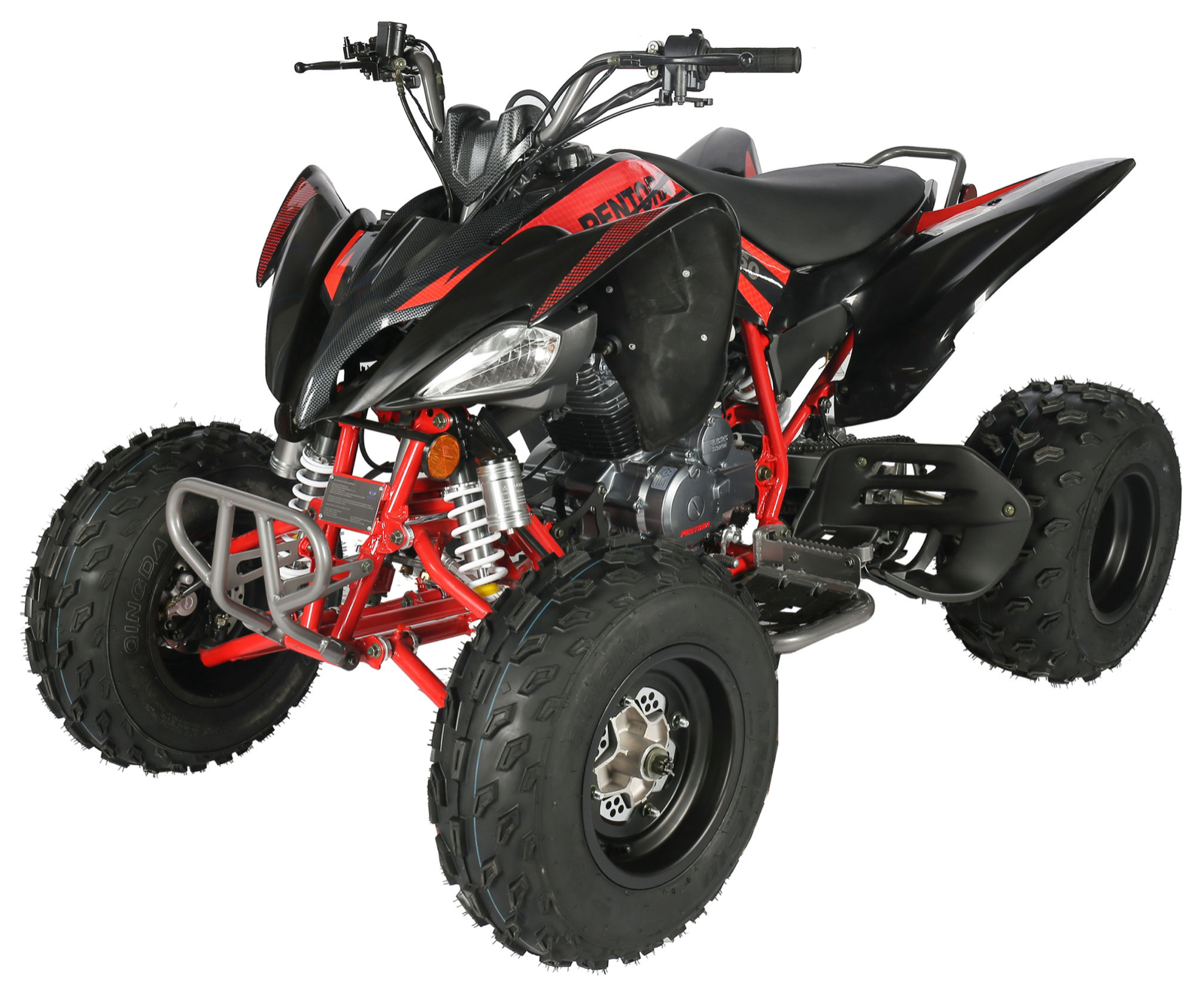

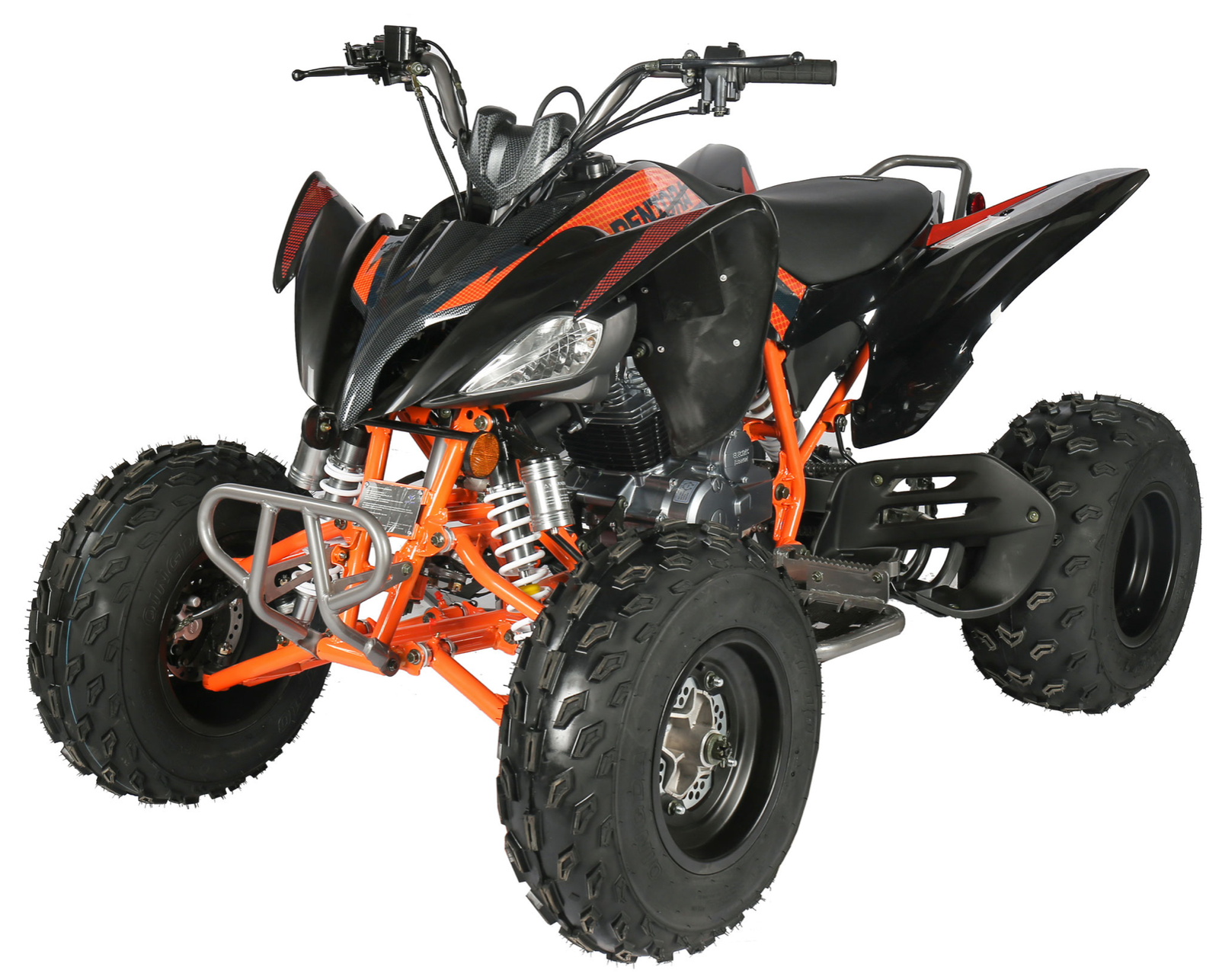

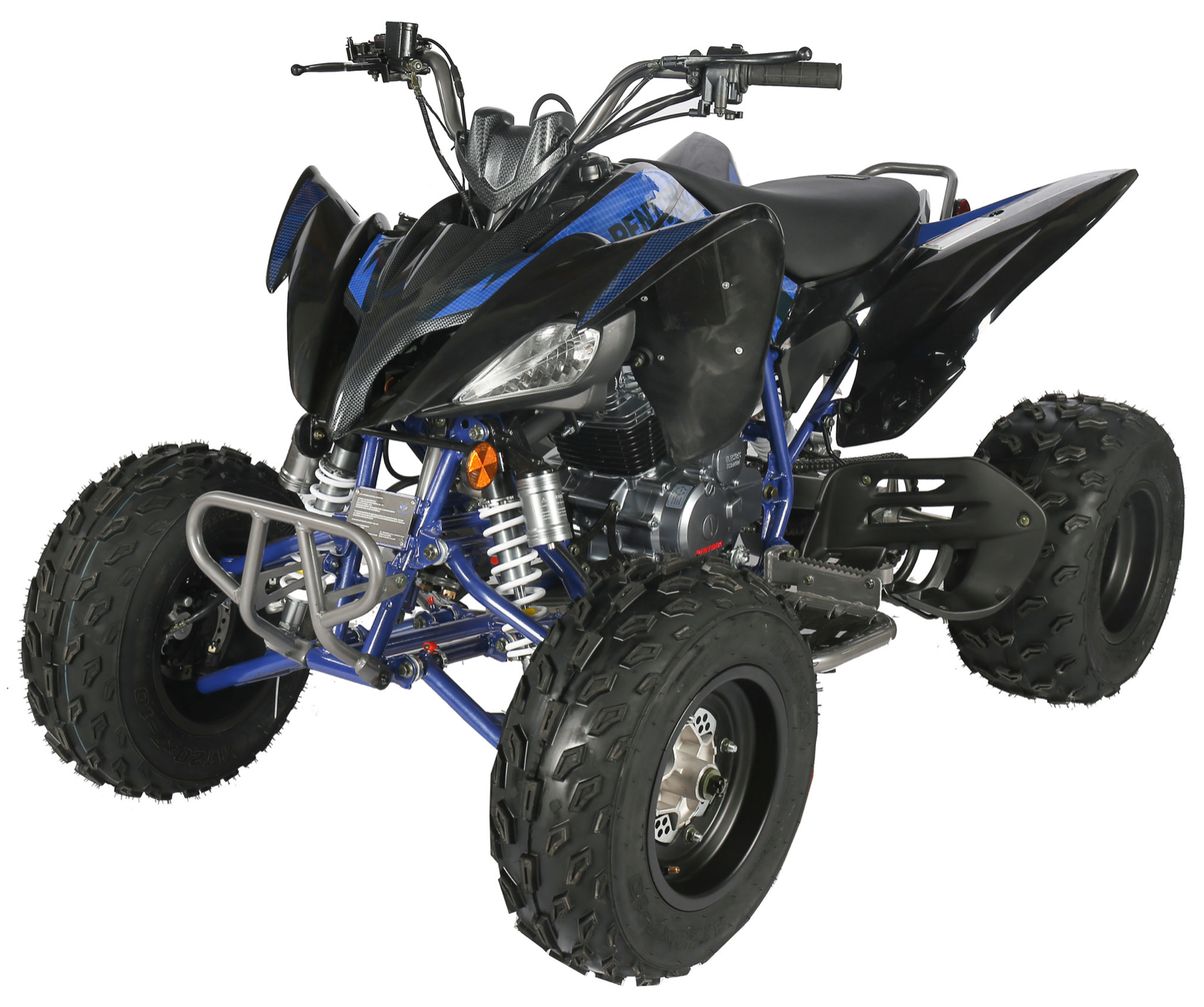

Vitacci Pentora 250cc ATV, Manual Clutch, 4-Stroke, Single Cylinder, Electric Start
The Vitacci Pentora 250cc ATV is a powerful and versatile off-road vehicle designed for both performance and durability. It features a 250cc 4-stroke single-cylinder engine with a manual clutch, providing a more engaging and controlled riding experience. The ATV includes an electric start for convenience.
The braking system consists of hydraulic disc brakes on both the front and rear, ensuring strong and reliable stopping power. The transmission uses a chain drive, which is known for its durability and efficiency. With a top speed of 70 km/h, the Pentora 250cc offers an exciting ride on various terrains.
The seat height is adjustable within a range of 790 ±15 mm, allowing for customization to suit different riders’ needs. Overall, the Vitacci Pentora 250cc ATV combines power, safety, and comfort for an enjoyable off-road experience. Age 16 Years old and up.
Technical Specifications
General Specifications
- L×W×H: 1625 x 1060 x 1065 mm
- Wheelbase: 1090 ± 20 mm
- Front Wheelbase: 820 mm
- Rear Wheelbase: 830 mm
- Minimum Ground Clearance: 135 ± 15 mm
- Seat Height: 790 ± 15 mm
- Ride Height: 225 mm
- Handle Height: 1000 mm
- Packing Size: 1460 x 880 x 860 mm (62 pcs/40HQ)
- Minimum Turning Circle Diameter: 5900 ± 500 mm
- Turning Angle: < 45°
- Rated Load: 100 kg
- Net Weight: 149 kg
- Gross Weight (with packing): 177 kg
- Front & Rear Brake: Hydraulic Disc
- Front & Rear Brake Operation Type: Front Hand Brake, Rear Foot Brake
- Front & Rear Rim: 10 x 5.5 AT / 9 x 8.0 AT
- Front & Rear Tire: AT 20 x 7.0-10 / AT 19 x 10-9
- Transmission: Chain
- Fuel Tank Capacity: 9 L
- Battery: 12V / 7 AH
- Maximum Speed: 70 km/h
- Starting Performance: 15 s
- Climbing Performance: 21°
- Parking Performance: ≥ 18°
- Emission Index – CO (%): ≤ 3.8
- Emission Index – HC (PPm): ≤ 800
- Noise Level (db(A)): ≤ 82 dB(A)
- Starting Acceleration: ≤ 8 s
- Speed Acceleration: ≤ 8 s
- Front & Rear Suspension: Oil Dumper
- Front Suspension Travel: 350 mm
- Rear Suspension Travel: 390 mm
- Age Requirement: 16 years old and up
Engine Specification
- Model: LC166FMM
- Type: Single Cylinder, 250cc Air-Cooled, 2 Valves, 4-Stroke
- Brand: LONCIN
- Bore × Stroke: 65.5 x 66.2 mm
- Capacity: 223 mL
- Compression Ratio: 9.0:1
- Max Power: 12 kW / 7500 rpm (1 ± 5%)
- Max Torque: 17 N·m / 6000 rpm (1 ± 5%)
- Min No Load Speed: 1500 r/min (1 ± 10%)
- Min Fuel Consumption Rate: 354 g / kW·h
- Fuel No: ≥ RQ90
- Clutch Method: Manual
- Start: Electric Start
- CDI: C.D.I
- Carburetor: PZ30
- Spark Plug: D8TC
- Front Light: 12V 18-18W
